Workshop view
Look at the relationship between the long profiles, roller bed and overhead handling structure.
Catalog ID S02 · Model MCZ-Z-400-10

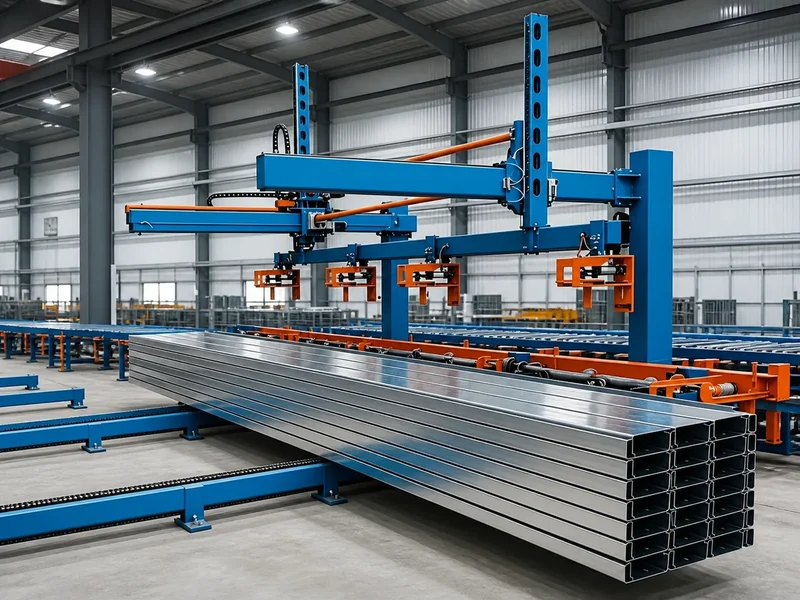

Automatic C/Z Purlin Turnover-Arm Stacker
Model MCZ-Z-400-10 receives formed C, U and Z profiles, positions and grips each part, and builds layered stacks with turnover as required by the stacking sequence.
Maximum lifting weight per individual profile: 300 kg. Do not select this model if any individual profile weighs more than 300 kg. This is not a finished-bundle load rating.
- Profile length
- 3,000–13,000 mm
- Profile width
- 100–400 mm
- Material thickness
- 1.5–5 mm
- Model
- MCZ-Z-400-10
Model MCZ-Z-400-10
Specifications for C, U and Z profile stacking.
The export specification describes positioning, gripping and layered stacking, with turnover used in the layer sequence. Lifting and traverse use gear-and-rack drives, linear rails and guide blocks. A transmission shaft connects the two arms to maintain positional consistency.
Use the stated ranges with the actual section drawing and required bundle pattern. The source term “waist height” must be matched to the drawing rather than assumed to describe another section dimension.
Machine specifications
| Model | MCZ-Z-400-10 |
|---|---|
| Maximum lifting weight per individual profile | 300 kg. Not suitable for individual profiles weighing more than 300 kg. |
| Profile types | C, U and Z |
| Profile length | 3,000–13,000 mm |
| Profile width | 100–400 mm |
| Material thickness | 1.5–5 mm |
| Waist height — source terminology | 40–125 mm; identify the corresponding dimension on your section drawing |
| Overall dimensions (L × W × H) | 6,400 × 3,200 × 4,200 mm; length excludes the transition / speed-up conveyor |
| Machine weight | Approximately 2.5 t |
| Installed power | 7.5 kW |
| Required air compressor | 3 kW compressor with a 100 L tank; required supporting facility |
| Lift and traverse drive | Gear and rack, guided by linear rails and blocks |
| Arm synchronisation | Transmission shaft connecting the two arms |
| Stack columns and layers | Adjustable within the designed range |
Specification basis: manufacturer-supplied export C-profile stacker specification for MCZ-Z-400-10. Single-piece lifting limit of 300 kg confirmed by the supplier on 11 October 2026. This replaces the previous presentation parameters on this page. Dimensions exclude the transition / speed-up conveyor as noted.
Handling scope
From profile positioning to layered stacks.
The sequence below summarises the supplied specification. The drawings remain conceptual references, not operating or setup instructions.
- 01
Receive and position
The formed profile enters the stacker conveyor, reaches its preset position and is precisely located before gripping.
- 02
Grip and place the first layer
The gripper places the positioned profile into the stack. This repeats until the first layer is complete.
- 03
Turn and build the next layer
For the following layer, the positioned profile is turned, gripped and placed. The sequence repeats until stacking is complete.
- 04
Prepare bundle handover
Set stack columns and layers within the designed range. Confirm the finished-stack removal and downstream handover arrangement for the project.
Technical illustrations only: shapes, counts and arrows are explanatory. They do not approve a bundle recipe, contact geometry, arm path, cycle time, capacity or continuous removal.
Color Steel Machine · Operation videos
Watch the workshop arrangement and handling arms.
These two clips from our YouTube channel complement the positioning, gripping and stacking sequence described above. The workshop view shows the equipment around the roller bed; the handling-arm view provides a closer look at the arm arrangement.
Handling-arm view
Follow the arm assembly relative to the profile and receiving bed, alongside the written layer sequence.
Source: Color Steel Machine (@colorsteelmachine). Operation views illustrate the equipment family; they are not a dimensional test, capacity verification or setup instruction. The MCZ-Z-400-10 specification above remains the parameter basis. Exact project configuration and bundle requirements must be agreed separately.
Application fit
Where this stacker fits.
Model MCZ-Z-400-10 is described for C, U and Z profiles after forming. Review the section drawing, length range, thickness, incoming orientation and required stack pattern together with the forming-line discharge and finished-stack handover.
Good project fit
- High-volume C- and Z-purlin roll-forming lines
- Lines requiring programmed counting, turning and aligned bundle formation
- Retrofit projects with a compatible run-out conveyor and control handshake
- Applications where profile coating and flange geometry require controlled handling
Supplied configuration list
Structure, drives and controls.
Component identifiers and listed quantities are reproduced from the export specification. Entries without a stated quantity are not assigned one here. The two repeated SD700 drive rows are retained as source entries.
| Main-frame square tube | 250 × 150 × 5 mm |
|---|---|
| Crossbeam square tube | 200 × 100 × 5 mm |
| Conveyor-frame square tube | 100 × 50 × 5 mm |
| Conveyor rollers | Ø120 × 480 mm |
| Linear guide blocks | HIWIN; lift and traverse |
| Gear and rack | Module 2.5 helical teeth; lift and traverse |
| Bearings | Harbin |
| Conveyor chain | Ziqiang |
| Cylinders and solenoid valves | AirTAC (Xingchen Pneumatics), as listed in the source |
| Traverse reducer | KM488-10-SF130-110, hypoid; 1; Feilande precision transmission |
| Lift reducer | GKAB49-SF130-110; 1; Zhejiang Geer |
| Turnover reducer | GKAB69-SF130-110; 1; Zhejiang Geer |
| Conveyor variable-frequency motor | GKA39-YVPEJ1.5-4P; 1; Zhejiang Geer |
| Lift servo motor | 3,000 W; 1; VEICHI |
| Traverse servo motor | 2,000 W; 1; VEICHI |
| Turnover servo motor | 1,300 W; 1; VEICHI |
| PLC | VH100-08080ETN; 1; VEICHI |
| Drive entries | SD710-5R5A-PA × 3; SD700-8R4D-PA × 1 listed twice; VEICHI |
| Inverter | 1; VEICHI; model not specified |
| Touchscreen | TPC1031NT; 1; Kunlun Tongtai (MCGS) |
| Contactor | CJX2s-4011; DELIXI |
| Intermediate relay | DELIXI |
| Photoelectric switch | OMRON |
| Proximity switch | Hugong |
| Limit switch | DELIXI |
| Circuit breaker | C63; DELIXI |
| Switching power supply | Ming Wei, as named in the source |
The source lists total installed power separately from individual motor entries; the values are not recalculated here. Confirm the final electrical schedule and component configuration in the order documentation.
Before your enquiry
C/Z stacker selection questions.
What is the maximum lifting weight per individual profile?
300 kg. Do not select MCZ-Z-400-10 if any individual profile weighs more than 300 kg. At or below this limit, section geometry, tooling and bundle arrangement still require review. This is not a finished-bundle load rating.
What profile sizes does MCZ-Z-400-10 cover?
The supplied specification states C, U and Z profiles with lengths of 3,000–13,000 mm, widths of 100–400 mm, thicknesses of 1.5–5 mm and a “waist height” of 40–125 mm. Confirm dimension labels and the complete section geometry on your drawing.
How does the turnover sequence work?
The profile is conveyed into position and precisely located. Gripping and placement complete the first layer. The following-layer sequence includes turnover before gripping and placement, repeating until the stack is complete.
Can stack columns and layers be adjusted?
Yes, the supplied document states that stack columns and layers can be adjusted within the designed range. It does not give a universal maximum stack height, bundle weight or recipe for every section.
What power and compressed-air facilities are listed?
The document lists 7.5 kW installed power and a required 3 kW air compressor with a 100 L tank. It does not state air pressure or consumption; agree those utility details for the project.
What delivery time is stated?
The supplied document states delivery 20 days after receipt of the deposit, with separate notification for events such as natural disasters, unexpected power outages or authority-ordered shutdowns. Confirm the current delivery schedule in the quotation and contract.
What production rate can I expect?
The supplied document does not give a cycle-time or shift-output guarantee. Send the actual arrival intervals, profile lengths and full-stack removal arrangement for configuration review.
Is this a sandwich-panel vacuum stacker?
No. This product uses profile gripping and mechanical turnover. Vacuum-cup quantities, panel load ratings and sandwich-panel handling parameters are not its specifications.
How do I send drawings?
Download the blank project-input TXT sheet and email authorised drawing references. The website enquiry form does not accept attachments.
Prepare your review
Drawings first. Configuration next.
Keep the actual C/Z section, incoming orientation and required bundle together. Leave unknown values open; this blank input sheet is not a machine specification or approval record.
Download the model-specific English brochure
Three-page MCZ-Z-400-10 specification and configuration guide, including the 300 kg maximum lifting weight per individual profile. View in the download centre.
Use the existing project input sheet
Complete the common project and C/Z sections. Check the drawing and bundle references before sending.
Email authorised drawing references · No form attachments.
- C or Z profile drawing and gauge
- Minimum and maximum profile length
- Line speed and discharge height
- Bundle count, orientation and transfer method
