Cutting + welding integrated
| Machine size | 17,000 × 900 × 2,200 mm |
|---|---|
| Plasma source | Huaao 120 |
| Welder | Huaao 350 A × 1 |
| Reducer | Precision planetary, ratio 50 |
Catalog ID W02 · Welding

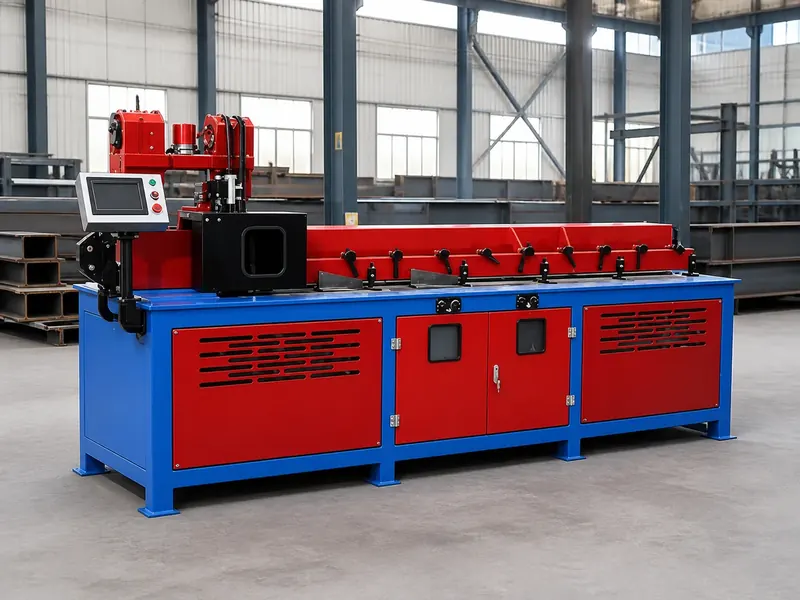

Tie-Rod Cutting & Welding Machines
Two documented configurations: an integrated plasma cutting and welding line, or a shorter welding-only machine for prepared workpieces.
- Workpiece length
- 2,500–9,000 mm
- Workpiece diameter
- 70–280 mm
- Configurations
- 2
- Installed power
- 34–37 kW
Application
Select the process boundary.
The integrated machine cuts and welds in one long cell. The welding-only version accepts pre-cut components and removes the plasma station.
- Wecon PLC and servo control
- Airtac / Xingchen pneumatic components
- 380 V / 50 Hz power supply
- Dedicated tie-rod support and positioning
Shared presentation data
| Workpiece length | 2,500–9,000 mm |
|---|---|
| Workpiece diameter | 70–280 mm |
| Installed power | 34–37 kW |
| Power supply | 380 V · 50 Hz |
| Control | Wecon PLC and servo system |
| Pneumatics | Airtac / Xingchen |
Configuration comparison
Integrated line or welding-only cell.
Welding-only
| Machine size | 13,800 × 1,300 × 2,300 mm |
|---|---|
| Plasma source | Not included |
| Welder | Final package to confirm* |
| Main structure | 200 × 100 and 160 × 80 mm sections |
Source package to confirm: the presentation comparison slide specifies two Huaao 500 A welders for the welding-only machine, while its detailed configuration slide specifies two XinSiLu 350 A welders. The final quotation must identify the selected power-source package.
Configuration decision
Start with what arrives at the machine.
Conceptual scope diagrams—not a physical station order, operating instruction, approved layout or component-readiness guarantee. Agree the actual cutting, preparation and handling functions for the project.
A · Cutting inside the requested scope
Define incoming stock and cutting functions requested in the integrated configuration. Do not assume all preparation, transfer or inspection tasks are included.
B · Prepared components for welding-only
Identify the upstream preparation provider and the actual incoming condition. The documented welding-only configuration excludes the plasma station; component suitability still requires review.
Use the same intended assembly and drawing revisions for both proposals, while recording their different incoming conditions and responsibilities. Neither route here establishes a faster cycle, lower cost or smaller installed footprint.
Use the detailed cutting-and-welding versus welding-only guide to prepare comparable scope and handover questions.
- Rod and end-part drawings
- Incoming stock condition and cutting requirement
- Weld procedure, power source and shielding gas
- Required output and handling method
Welding project preparation guides
Prepare the actual workpiece information and clarify the process scope before requesting the final configuration.
- Tie-Rod Equipment: Cutting & Welding vs Welding-Only
- Automated Welding: Acceptance Evidence Preparation
- Purlin cleat drawing and fixture inputs — a separate guide for cleat-plate projects, not a tie-rod fixture specification.
- Prepare a comparable quotation request
- Download welding preparation sheets
These guides organise purchasing information; they do not specify welding settings or acceptance limits.
Blank preparation sheets
Prepare the information before the enquiry.
Workpiece and project inputs
Collect drawing revisions, material and weld references, incoming condition and requested configuration. Unknowns can remain TBD.
Download inputs (TXT)Evidence and responsibilities
Identify procedure and evidence references, reviewers and open handover items. This blank sheet is not an acceptance protocol or sign-off.
Download evidence (TXT)The website enquiry form does not accept attachments. After the initial enquiry, send authorised drawings to tony.buy@gmail.com; do not send confidential information without permission.
Before requesting a W02 configuration
What distinguishes integrated and welding-only equipment?
The documented integrated configuration includes a plasma cutting station. Welding-only receives prepared components from upstream and excludes that station. Identify the actual incoming condition and itemise included functions before selection.
Does welding-only always need less installation space?
A shorter machine outline is not an approved installation layout. Incoming stock, workpiece handling, service arrangements and downstream handover must also be considered in the supplier's project layout.
Which welding power-source package applies to welding-only?
The presentation slides disagree. The original disclosure in the configuration section is retained; this page does not choose between the ratings. The final quotation must identify the selected package.
Can the preparation sheet approve the assembly or weld quality?
No. The blank sheets collect project and evidence references, not acceptance limits or sign-off. Use actual drawings, the agreed scope and separate project protocols and reports with the responsible reviewers.
